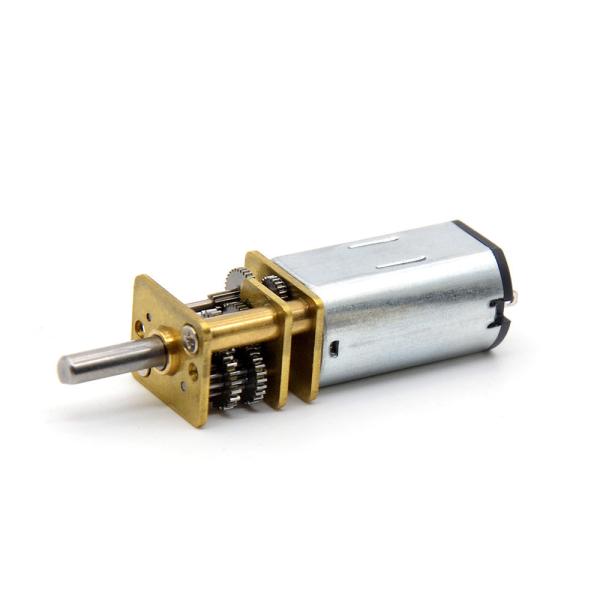

12mm N30 Micro DC Gear Motors 2000rpm 3mm Dia Shaft 6v 12v DC
N30 12mm Micro Gear Motor 3mm Diameter Shaft 6v 12v DC volt More
Speed
N20 Small DC Gear Motors
The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a
lightweight, high torque, and low RPM motor. This motor is equipped
with a gearbox assembly to increase the torque of the motor. It has
a cross-section of 10 × 12 mm, and the D-shaped gearbox output
shaft is customization long and 3 mm in diameter.
This motor has low energy consumption and low noise. Replacement of
spare parts will make your electrical and testing equipment look
new. The bearing quality and the service life of the geared motor
are improved, and it is extremely durable.
Because of its small size, the motor fits in complex spaces of
small-scale applications. One can connect this Micro Gear Motor to
wheels to drive them from one place to another while carrying high
loads.
The motor is used in DIY RC Hobby, vehicles, drones, airplanes,
etc., the miniature gearbox motor, it is an excellent substitute
for the rusty or damaged DC geared motor on the machine.
Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm
gearbox motors as following:
 |  |  |  |
| JGA12-N20B | JGA12-N10 | JGA12-N30 | JGA1024-N20 |
 |  |  |  |
Specification:
Speed:2000rpm,1000rpm,500rpm,333rpm,200rpm,100rpm,66rpm,47rpm,40rpm,33rpm,26rpm
Speed:4000rpm,2000rpm,1000rpm,666rpm,400rpm,200rpm,133rpm,95rpm,80rpm,67rpm,52rpm
Shaft/Voltage/rpm/Torque can be provided also.
we do have other series such as 25D/37D/42D can meet your request,
welcome to contact us .
You can also have our other 12mm dc gear motor profile 12MM
Small Dc Gear Motor_PDF00.pdf
Datasheet:
| Model | Rated | No load | On Load | Stall | Ratio |
| Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| vort.v | rpm | mA | rpm | mA | g.cm | w | kg.m | ma | 1:00 |
| 12-N30 | 6 | 1400 | 13 | 1190 | 30 | 5 | 0.20 | 0.05 | 150 | 5 |
| 12-N30 | 6 | 700 | 13 | 595 | 30 | 10 | 0.20 | 0.09 | 150 | 10 |
| 12-N30 | 6 | 350 | 13 | 298 | 30 | 12 | 0.20 | 0.15 | 150 | 20 |
| 12-N30 | 6 | 233 | 13 | 198 | 30 | 15 | 0.20 | 0.25 | 150 | 30 |
| 12-N30 | 6 | 140 | 13 | 119 | 30 | 20 | 0.20 | 0.30 | 150 | 50 |
| 12-N30 | 6 | 70 | 13 | 60 | 30 | 28 | 0.20 | 0.45 | 150 | 100 |
| 12-N30 | 6 | 47 | 13 | 40 | 30 | 35 | 0.20 | 0.52 | 150 | 150 |
| 12-N30 | 6 | 33 | 13 | 28 | 30 | 113 | 0.20 | 0.65 | 150 | 210 |
| 12-N30 | 6 | 28 | 13 | 24 | 30 | 130 | 0.20 | 0.80 | 150 | 250 |
| 12-N30 | 6 | 23 | 13 | 20 | 30 | 145 | 0.20 | 1.00 | 150 | 298 |
| 12-N30 | 6 | 18 | 13 | 16 | 30 | 200 | 0.20 | 2.00 | 150 | 380 |
| 12-N30 | 6 | 7 | 13 | 6 | 30 | 1500 | 0.20 | 6.00 | 150 | 1000 |
Pls contact me if you have any
question
Pls leave message of Voltage and No load Speed which you want,
Thanks for your understand!
