37mm 12V 7RPM Small DC Gear Motors High Torque Electric Motors

Ask Lasest Price
Brand Name :	ASLONG
Model Number :	JGB37-520
Certification :	Rosh.CE
Price :	USD4.9/pcs
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000pcs/Week
Delivery Time :	5-8working days

Add to Cart

Product Details
Company Profile

37mm 12V 7RPM Small DC Gear Motors High Torque Electric Motors

37mm 12V 7RPM Small DC Gear Motors High Torque Electric Motors

37mm 12V DC 7RPM To 960RPM High Torque Gear Box Electric Motor New Gearmotor

37mm 12V 7RPM Small DC Gear Motors High Torque Electric Motors

JGB37-520 Micro Dc Gear Motor Description:

Now ,you can get our this 37mm dc gear motor with magnetic encoder(JGB37-520B),and other related 37mm gearbox motors as following:


JGB37-520B	JGB37-3530	JGB37-3157	JGB37-3625

JGB37-3650	JGB37-545	JGB37-550	ZGA37-3530

Specification:

Notice: The lower speed is the larger torque

Voltage: DC12V
No-load Speed: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm

Voltage: DC24V
No-load Speed: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm

Max Power: 10W
Max Torque: 25kg/cm

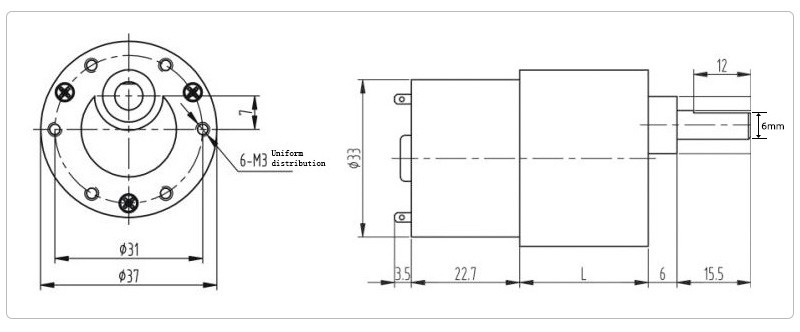

Motor Diameter: 33mm
Motor Body Length: 22.7mm
Output Shaft Diameter: 6mm
Output Shaft Length: 15mm
Gearbox Diameter:37mm
Gearbox Length:see the table

Datasheet:

Model:JGB37-520	No load			On Load				Stall		Ratio	Length(L)	Weight
Model:JGB37-520	Workable Voltage	Speed	Current	Speed	Current	Torque	Output	Torque	Current	Ratio	Length(L)	Weight
Workable Voltage	V	rpm	ma	rpm	ma	Kg.cm	W	Kg.cm	A	1:00	mm	g
3-9V	6	1280	300	896	700	0.07	1	0.28	2	6.25	19	144
	6	800	300	640	700	0.1	1	0.4	2	10	19	144
	6	425	300	340	700	0.18	1	0.72	2	18.8	22	150
	6	266	200	212	500	0.3	1	1.2	2	30	22	150
	6	142	200	113	400	0.56	1	2.2	2	56	24	158
	6	88	100	70	400	0.9	1	3.6	2	90	24	158
	6	61	100	48	350	1.3	1	5.2	2	131	26.5	158
	6	47	100	37	300	1.68	1	6.7	2	168	26.5	164
	6	29	100	23	200	2.7	1	10	2	270	26.5	164
	6	16	100	12	150	5	1	20	2	506	29	170
	6	10	100	8	150	8	1	32	2	810	29	170
6-15V	12	960	100	672	200	0.1	0.8	0.4	1.2	6.25	19	144
	12	600	100	480	200	0.15	0.8	0.6	1.2	10	19	144
	12	319	100	255	170	0.28	0.8	1.1	1.2	18.8	22	150
	12	200	60	160	150	0.45	0.8	1.8	1.2	30	22	150
	12	107	60	85	150	0.84	0.8	3.0	1.2	56	24	158
	12	66	60	52	100	1.35	0.8	5.0	1.2	90	24	158
	12	45	60	36	100	1.9	0.8	7.0	1.2	131	26.5	158
	12	35	50	28	100	2.5	0.8	10.0	1.2	168	26.5	164
	12	22	50	18	80	4	0.8	16	1.2	270	26.5	164
	12	12	50	10	80	7.5	0.8	30	1.2	506	29	170
	12	7	50	5.6	80	12	0.8	48	1.2	810	29	170
12-30V	24	960	35	672	150	0.15	0.7	0.6	0.8	6.25	19	144
	24	600	35	480	150	0.2	0.7	0.8	0.8	10	19	144
	24	319	35	255	150	0.37	0.7	0.15	0.8	18.8	22	150
	24	200	35	160	120	0.6	0.7	2.4	0.8	30	22	150
	24	107	35	85	120	1	0.7	4	0.8	56	24	158
	24	66	35	52	100	1.8	0.7	7	0.8	90	24	158
	24	45	35	36	80	2.5	0.7	10	0.8	131	26.5	158
	24	35	30	28	60	3.3	0.7	13	0.8	168	26.5	164
	24	22	30	18	50	5	0.7	20	0.8	270	26.5	164
	24	12	30	10	40	10	0.7	40	0.8	506	29	170
	24	7	30	5.6	40	16	0.7	64	0.8	810	29	170

37mm 12V 7RPM Small DC Gear Motors High Torque Electric Motors

FAQ

1. Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2. Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3. Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4. Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5. Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
