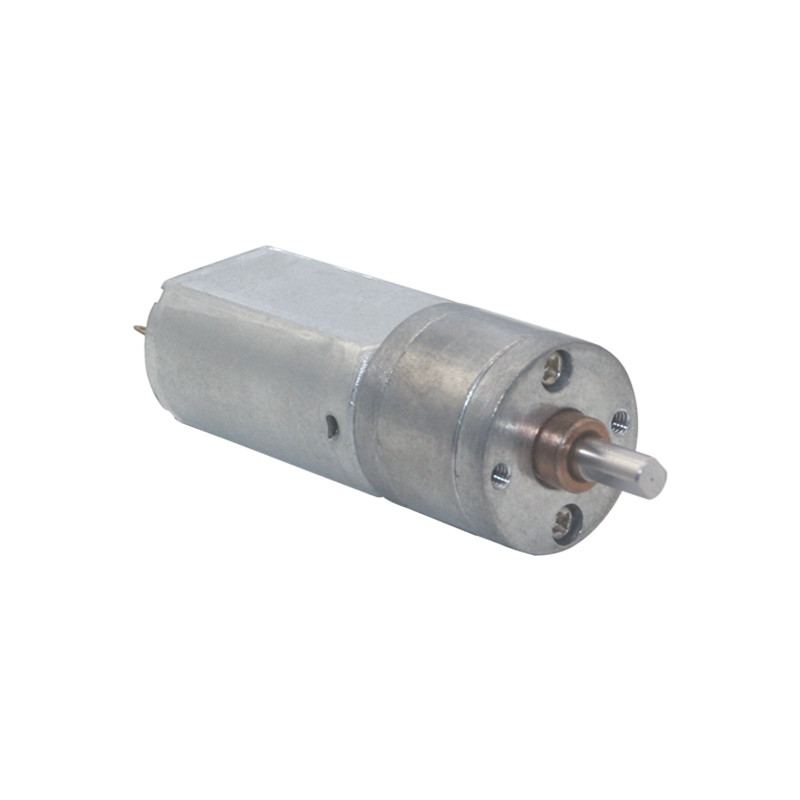

JGA20-180 20mm 480rpm High Rpm Gear Motor 6v 12v Dc Motors For
Robotics
20mm DC 6v 24rpm to 480rpm Large Torque Geared Motor Low Voltage
Brush Spur Micro DC Gear Motor
high torque gear motor Feature:
● Rate Voltage:12V
● Ratio:500/390/312/250/195/125/100/78/63/50/31/25
● No-load Speed:24rpm/30rpm/38/50/60/100/120/150/200/240/380/480rpm
● Micro body large torque
● High quality and 100% brand new
● Customized available
● Weight:60g
Dimension:
Datasheet:
| Model | No load | On Load | Stall | Weight | Size(L) |
| Rated Voltage | Speed | Current | Speed | Current | Torque | Power | Torque | Current |
| V | rpm | A | rpm | A | Kg.cm | W | Kg.cm | A | g | mm |
| JGA20-180-25K | 12 | 480 | 0.1 | 396 | 0.22 | 0.43 | 1.2 | 1.75 | 2.5 | 52 | 16 |
| JGA20-180-31K | 12 | 380 | 0.1 | 304 | 0.52 | 0.43 | 1.36 | 2.17 | 2.5 | 52 | 16 |
| JGA20-180-50K | 12 | 240 | 0.1 | 200 | 0.48 | 0.6 | 1.26 | 2.6 | 2.5 | 53 | 17.3 |
| JGA20-180-63K | 12 | 200 | 0.1 | 156 | 0.51 | 0.86 | 1.4 | 3.5 | 2.5 | 53 | 17.3 |
| JGA20-180-78K | 12 | 150 | 0.1 | 120 | 0.49 | 0.97 | 1.21 | 3.9 | 2.5 | 53 | 17.3 |
| JGA20-180-100K | 12 | 120 | 0.1 | 97 | 0.5 | 1.38 | 1.4 | 5.4 | 2.5 | 54 | 19 |
| JGA20-180-125K | 12 | 100 | 0.1 | 73 | 0.54 | 2.48 | 1.9 | 8.7 | 2.5 | 54 | 19 |
| JGA20-180-195K | 12 | 60 | 0.1 | 49 | 0.53 | 4 | 2.09 | Forbidden | 54 | 19 |
| JGA20-180-250K | 12 | 50 | 0.1 | 40 | 0.53 | 4.96 | 2.07 | 54 | 20.5 |
| JGA20-180-312K | 12 | 38 | 0.1 | 31 | 0.47 | 6 | 1.94 | 54 | 20.5 |
| JGA20-180-390K | 12 | 30 | 0.1 | 24.5 | 0.42 | 6 | 1.5 | 54 | 20.5 |
| JGA20-180-500K | 12 | 24 | 0.1 | 22 | 0.38 | 6 | 1.35 | 54 | 20.5 |
Application: Electric Toy,Hair curler,smart lock,robotic.
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North
America(30.00%),Domestic Market(15.00%),Western
Europe(10.00%),Eastern Europe(10.00%),Northern
Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South
America(5.00%),Oceania(5.00%),South
Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total
about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear
Motor
4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in
this industry for over 10 years,we have many experinec to provide
motors according to customer's requirements.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
