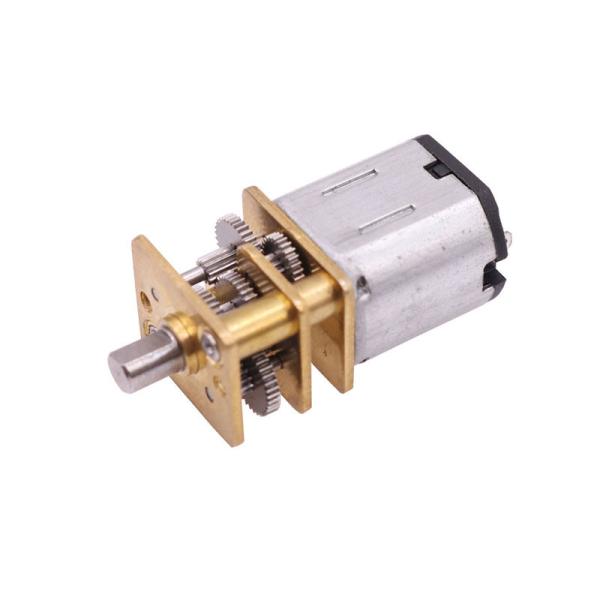

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft
N10 High Rpm High Torque Dc Gear Motor 55 Rpm-2100 Rpm 3V 6V 12mm
Diameter Mini Gearbox
N20 Small DC Gear Motors
The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a
lightweight, high torque, and low RPM motor. This motor is equipped
with a gearbox assembly to increase the torque of the motor. It has
a cross-section of 10 × 12 mm, and the D-shaped gearbox output
shaft is customization long and 3 mm in diameter.
This motor has low energy consumption and low noise. Replacement of
spare parts will make your electrical and testing equipment look
new. The bearing quality and the service life of the geared motor
are improved, and it is extremely durable.
Because of its small size, the motor fits in complex spaces of
small-scale applications. One can connect this Micro Gear Motor to
wheels to drive them from one place to another while carrying high
loads.
The motor is used in DIY RC Hobby, vehicles, drones, airplanes,
etc., the miniature gearbox motor, it is an excellent substitute
for the rusty or damaged DC geared motor on the machine.
Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm
gearbox motors as following:
 |  |  |  |
| JGA12-N20B | JGA12-N10 | JGA12-N30 | JGA1024-N20 |
 |  |  |  |
High Torque Dc Motor Specification:
1. Rated voltage: DC 5V
2. No-load current: 60mA
3. No-load speed: 80RPM
4. Suitable voltage: DC 3V-5V
5. Speed: 90RPM-150RPM
6. Weight: 12g
7. Output shaft length: 8mm(D type shaft)
Voltage/rpm/shaft can be customized , welcome to consult.
Drawing:
Datasheet:
| Model | No load | On Load | Stall | Ratio |
| Workable Voltage | Speed | Current | Speed | Current | Torque | Torque | Current |
| V | rpm | A | rpm | ma | Kg.cm | Kg.cm | ma | 1:00 |
| 6 | 2100 | 40 | 1680 | 130 | 0.02 | 0.1 | 0.5 | 10 |
| 6 | 700 | 40 | 560 | 130 | 0.04 | 0.2 | 0.5 | 20 |
| 6 | 420 | 40 | 336 | 130 | 0.06 | 0.3 | 0.5 | 50 |
| 6 | 210 | 40 | 168 | 130 | 0.1 | 0.5 | 0.5 | 100 |
| 6 | 140 | 40 | 112 | 130 | 0.16 | 0.8 | 0.5 | 150 |
| 6 | 100 | 40 | 80 | 130 | 0.22 | 1.1 | 0.5 | 210 |
| 6 | 70 | 40 | 56 | 130 | 0.3 | 1.5 | 0.5 | 298 |
| 6 | 55 | 40 | 44 | 130 | 0.4 | 2 | 0.5 | 380 |
