JGY-N20 Micro DC Gear Motors 12v Self Lock Low Noise Metal Worm
Gearbox Motor
Mirco Dc gear Motors JGY-N20 12v self lock low noise all metal gear
worm gear motor for smart lock

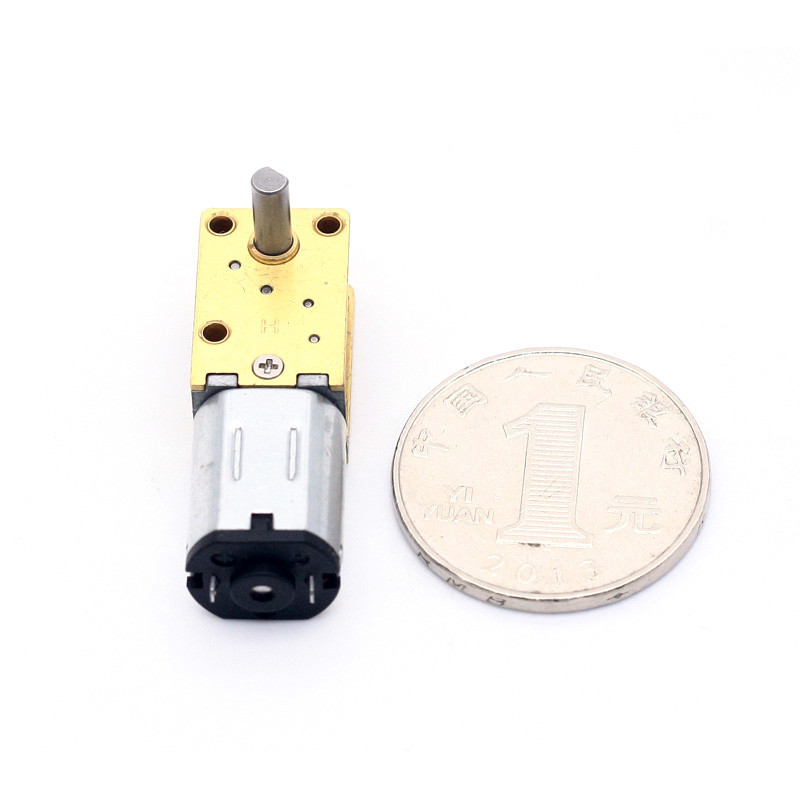

N20 Small DC Gear Motors
The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a
lightweight, high torque, and low RPM motor. This motor is equipped
with a gearbox assembly to increase the torque of the motor. It has
a cross-section of 10 × 12 mm, and the D-shaped gearbox output
shaft is customization long and 3 mm in diameter.
This motor has low energy consumption and low noise. Replacement of
spare parts will make your electrical and testing equipment look
new. The bearing quality and the service life of the geared motor
are improved, and it is extremely durable.
Because of its small size, the motor fits in complex spaces of
small-scale applications. One can connect this Micro Gear Motor to
wheels to drive them from one place to another while carrying high
loads.
The motor is used in DIY RC Hobby, vehicles, drones, airplanes,
etc., the miniature gearbox motor, it is an excellent substitute
for the rusty or damaged DC geared motor on the machine.
Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm
gearbox motors as following:
General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A
Single Shaft or dual shaft both available. customized can be
provided also, welcome to consult.
| JGA12-N20B | JGA12-N10 | JGA12-N30 | JGA1024-N20 |

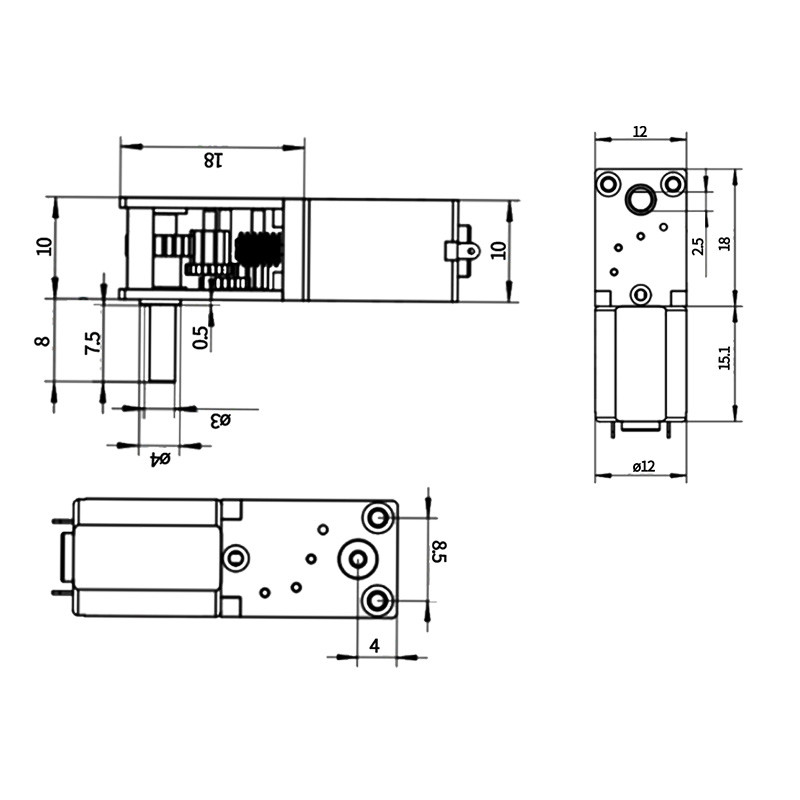

Drawing:
Datasheet:
| Model | Reduction Ratio | No load | On Load | Stall | Power |
| Workable Voltage | Speed | Current | Speed | Current | Torque | Torque | Current |
| V | rpm | A | rpm | ma | gf.cm | gf.cm | ma | W |
| JGY-N20 | 42 | 12 | 271 | 30 | 216 | 85 | 71 | 235.2 | 700 | 1.02 |
| 118 | 12 | 136 | 30 | 108 | 85 | 142 | 472 | 700 | 1.02 |
| 236 | 12 | 68 | 30 | 53 | 85 | 283 | 844 | 700 | 1.02 |
| 302 | 12 | 53 | 30 | 42 | 85 | 362 | 1208 | 700 | 1.02 |
| 603 | 12 | 27 | 30 | 20 | 85 | 579 | 1929.6 | 700 | 1.02 |
| 1016 | 12 | 13 | 30 | 10 | 85 | 975 | 3251.2 | 700 | 1.02 |
