Brand Name : | Aslong |
Model Number : | CM42 |
Certification : | Rosh,CE |
Price : | Negotiation |
Payment Terms : | T/T, Western Union, MoneyGram, L/C |
Supply Ability : | 10000pcs/week |
Delivery Time : | 5-8Working days |

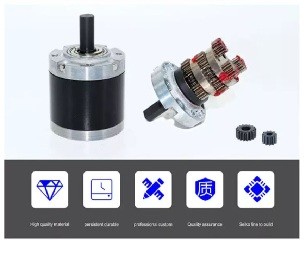

795 895 775 Planetary Gear Motor 42mm 12v CM42 Planetary Reducer
CM42 Planetary Reducer 42MM Planetary Gearbox Equipped With 775 795 895 Motor
Specification:
42mm gear box | |
![]() | Integrated output The integrated output realizes low noise and ensures that the motor teeth and outputshaft undergo high temperature heat treatment to increase strength and wear resistance. |
![]() | About customization We focus on the R&D and production of high-quality motors, and you can choose specifications according to your needs! Welcome to order samples and drawings, or consult our online customer service! |
![]() | Metal planetary gear High-grade low-carbon alloy,carburizing and quenching,hard and wear-resistant,to ensure the service life of the reducer. |
![]() | High-strength ring gear Gear transmission reduction box,high coincidence tooth profile balanced operation,high torque,low backlash |
![]() | Planetary gear Efficient and stable All metal material, good performance Wear resistance and impact resistance Fast heat dissipation Low noise and long service life |
Dimensions (unit:mm):
Grade | Lenght (mm) | Reduction ratio | Number of teeth of inner ring gear | Motor tooth inner hole 5.0 |
Lever 1 | 31.5 | 3.7 | 46 | 17 |
Lever 2 | 42 | 13.7 | 46 | 17 |
19.2 | 46 | 17 | ||
Lever 3 | 45 | 51 | 46 | 17 |
71 | 46 | 17 | ||
99.5 | 46 | 17 | ||
Lever 4 | 63.5 | 188.6 | 46 | 17 |
263.7 | 46 | 17 | ||
368.7 | 46 | 17 | ||
515.6 | 46 | 17 |
