Name: 37mm 12v 24v 1600 Rpm High Torque dc gear motor with encoder
Brand: ASLONG
Price: 1 USD

37mm 12v 24v 1600 Rpm High Torque dc gear motor with encoder

Ask Lasest Price

Brand Name :

ASLONG

Model Number :

JGB37-3530B

Certification :

Rosh,CE

Price :

Negotiation

Payment Terms :

L/C, T/T, MoneyGram

Supply Ability :

10000pcs/week

Delivery Time :

3-7working days

37mm 12v 24v 1600 Rpm High Torque dc gear motor with encoder

37mm 12v 24v 1600 Rpm High Torque Dc Gear Motor With Encoder

37mm Diameter All Metal Gear Box 12v 24v DC Gear Motor with Encoder 7RPM to 1600 rpm Gearmotor motop High Torque Eccentric Shaft

37mm 12v 24v 1600 Rpm High Torque dc gear motor with encoder

JGB37-520 Micro Dc Gear Motor Description:

Now ,you can get our this 37mm dc gear motor with magnetic encoder(JGB37-520B),and other related 37mm gearbox motors as following:


JGB37-520B	JGB37-3530	JGB37-3157	JGB37-3625

JGB37-3650	JGB37-545	JGB37-550	ZGA37-3530

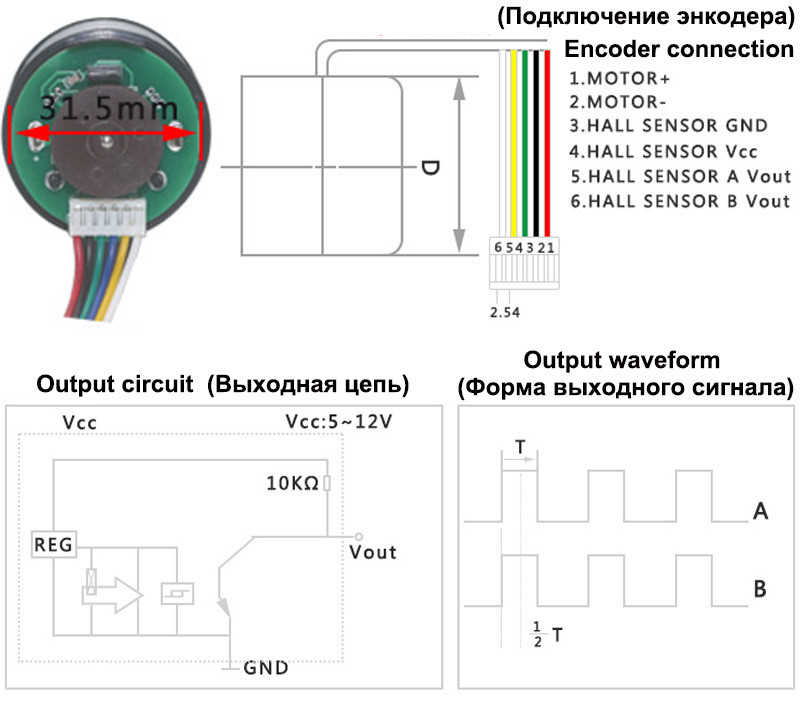

Wiring method

Red line : DC power supply positive pole connected to the motor

Black wire : DC power supply negative pole connected to the motor

Green line : Sensor ground

Blue line : Sensor power supply

Yellow wire : Signal A output point

White line : Signal B output point

Encoder introduction
1. Outstanding features: This motor witn encoder; the motor has a speed measuring function ;

2. The encoder has high performance and is a two-channel and three-channel incremental magnetic encoder. It can adapt to harsh environments. Each magnetic encoder contains a magnetic grid and magnetic sensitivity to detect the motor. The quadrature phase angle of the two channels of the output is 90 degree Celsius square wave, the motor has two signal lines, the motor rotates one turn, each output 16 square waves

Structures :
1. Use all metal gears

2. Pure copper coil with super high conductivity and high temperature resistance

3. The motor has an encoder, you can measure the number of revolutions

4. Using high-quality gears, the gears are heat treated and more wear-resistant, making the motor last longer.

5. The motor of this link does not have a protective cover. If you need a motor with a protective cover, please contact us before purchasing.

37mm 12v 24v 1600 Rpm High Torque dc gear motor with encoder

Motor parameter table:

Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced

The parameters in the table below are the parameters for the motor connection rated voltage 12v / 24v

If the motor is connected to a non-rated voltage input, all parameters of the motor will change.

JGB37-3530 Rate Volt DC12V

Reduction Ratio	6.25	10	18.8	30	56	90	131	168	270	506	810
No load Current (ma)	<120	<120	<120	<120	<120	<120	<120	<120	<120	<120	<120
No load RPM	1600	1000	S31	333	178	111	76	S9	37	20	12
Load torque (Kg,cm)	0.3	0.38	0.7	1.14	2.1	3.4	5	6.3	10	19	30
Load RPM	1120	800	424	266	412	88	60	47	29	16	9
Load Current (ma)	<400	<400	<400	<400	<400	<400	<400	<400	<400	<400	<400
Max Torque (Kg.cm)	1	1.S2	2.8	4.5	8.4	13	20	25	Max 40KG
Gear box length (rrm)	19	19	22	22	24	24	26.5	26.5	26.5	29	29

JGB37-3530 Rate Volt DC24V

Reduction Ratio	6.25	10	18.8	30	56	90	131	168	270	506	810
No load Current (ma)	<S0	<50	<50	<50	<50	<50	<50	<50	<50	<50	<S0
No load RPM	960	600	319	200	107	66	45	35	22	12	7
Load torque (Kg,cm)	0.2	0.29	0.54	1.1	1.6	2.61	3.7	4.8	7.8	14	23
Load RPM	672	480	255	160	85	52	36	28	18	10	5.6
Load Current (ma)	<100	<100	<100	<100	<100	<100	<100	<100	<100	<100	<100
Max Torque (Kg.cm)	1	1.16	2.1	4.4	6.4	10	14.8	19	Max 31KG
Gearbox length (mm)	19	19	22	22	24	24	26.5	26.5	26.5	29	29

FAQ

1.Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3.Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4.Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5.Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
