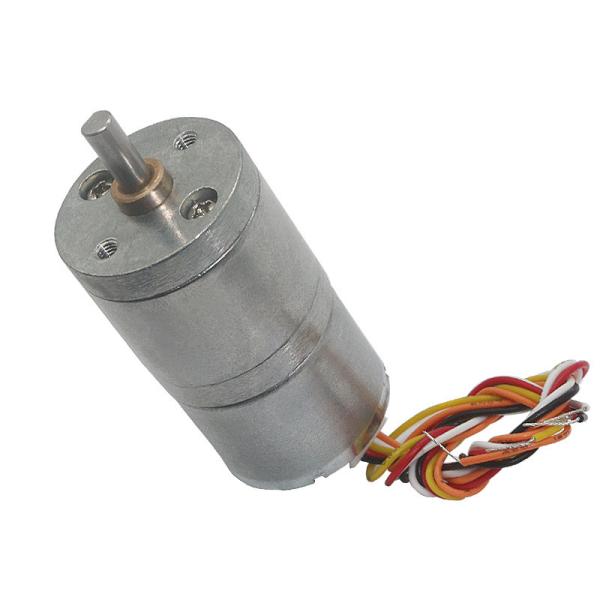

Wiring method introduction

Black line : Connect DC power supply negative - (Prohibit errors) Red line: Connect DC power supply positive + (Prohibit errors) The red wire is connected to the positive pole of the power supply; the black and white wires are connected to the negative pole of the power supply, and the motor rotates clockwise. The red wire is connected to the positive pole of the power supply; the black wire, the white wire, the orange wire, and the three wires are connected to the negative pole of the power supply at the same time, and the motor rotates counterclockwise. Yellow line: Signal line, the motor rotates one turn and output 18 pulse signals White line: Duty cycle, pulse width speed regulation 15-25khz (The current line of controls the motor to change clockwise or counterclockwise. Connect the orange line to the black line and the motor will change the direction of rotation immediately. (Overcurrent protection 0.8A; once the current is exceeded, the motor will Stop working immediately, and the motor can be re-run after the power is connected again.) For the connection method of the motor and brushless controller, you can contact us and we will guide you.
