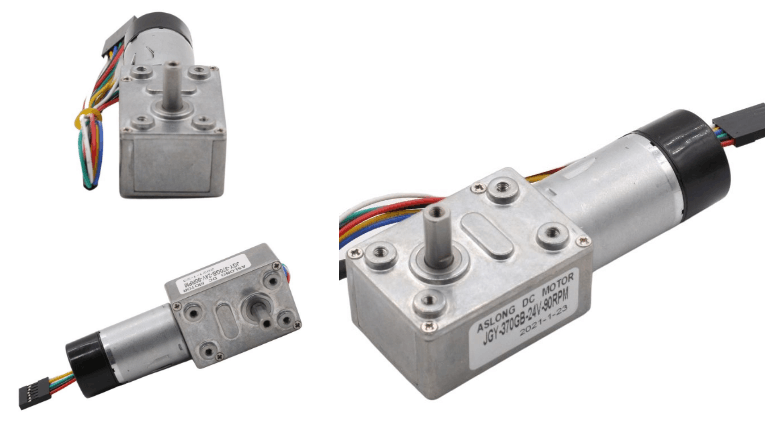

1. Standard Operating Conditions
1-1 Rated Voltage:6v 12v 24v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of
-10C~+50C,Humidity range of 30%~80%.
1- 4 Storage Temperature:Temperature range of -20C~+60C
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
-- No load speed:4-115rpm.
-- Robotics, Small Appliance, Fanner, Electric Curtain;
-- Medical Pump, Surgery Tools, Medical Stirrer, centrifugal
Machine; Electric Valve, Actuator, medical device
-- Electric motor,low noise,low current and no spark.
Ratio:1/37.3,1/150,1/200,1/250,1/324,1/600,1/972.
1:1700 1:2900
The Motor speed : 6000rpm
If you need other speed , pls contact us
Remark:Pls confirm the voltage and speed before ordering,if you
don't reply within 8 hours after ordering,we will random send one
for this type,hope your kindly understanding.
wire connection information:
Red Wire - positive power supply of motor(+)
Black Wire - negative power supply of motor(-)
Green Wire - negative power supply of encoder(-) (positive and
negative power supply of encoder do not allow connect wrong;
Blue Wire - positive power supply of encoder(+) (positive and
negative power supply of encoder do not allow connect wrong,(5-12v)
Yellow Wire - signal feedback (11 signals per motor turns a circle)
White Wire - signal feedback (11 signals per motor turns a circle)
Product drawing :
Datasheet:
| Rated DC 6V660 testing parameter datasheet |
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
| | | | | | | | | |
| Rated DC 12V1260 testing parameter datasheet |
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| | | | | | | | | |
| Rated DC 24V2460 testing parameter datasheet |
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 |
