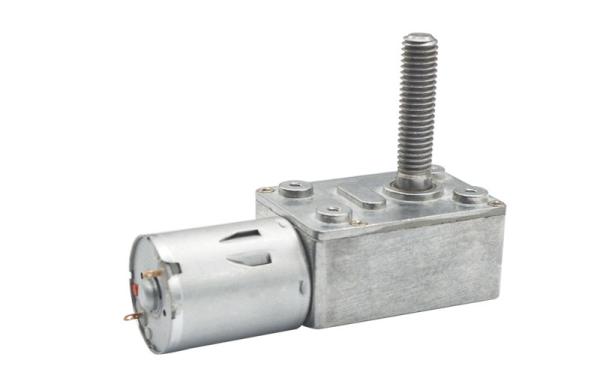

Threaded Shaft Square Gear Box Motor 24V High Torque 150rpm
M8*33mm Threaded shaft 6V 12V 24V 6-150RPM High Torque Electric DC
Worm Geared Motor
| Worm gearbox Micro Dc Gear Motor Description: | |
Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:
 |  |  |  |
JGY-370 | JGY-395 | JGY-385 | 5840-31ZY |
 |  |  |  |
| 5840-3650 | 5840-555 | JGY-2430 | 5882-4260 |
Specifications:
- Rated Volt: DC 6v 12V 24V
- Speed(No load): 2/6/10/18/23/30/40/90/150 RPM
- Max torque:24kg.cm
- Main Material:Metal
- 8mm Diameter screw shaft
- Weight:160g
Datasheet:
| Rated DC 6V660 testing parameter datasheet |
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
| | | | | | | | | |
| Rated DC 12V1260 testing parameter datasheet |
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| | | | | | | | | |
| Rated DC 24V2460 testing parameter datasheet |
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North
America(30.00%),Domestic Market(15.00%),Western
Europe(10.00%),Eastern Europe(10.00%),Northern
Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South
America(5.00%),Oceania(5.00%),South
Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total
about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear
Motor
4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in
this industry for over 10 years,we have many experinec to provide
motors according to customer's requirements.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
