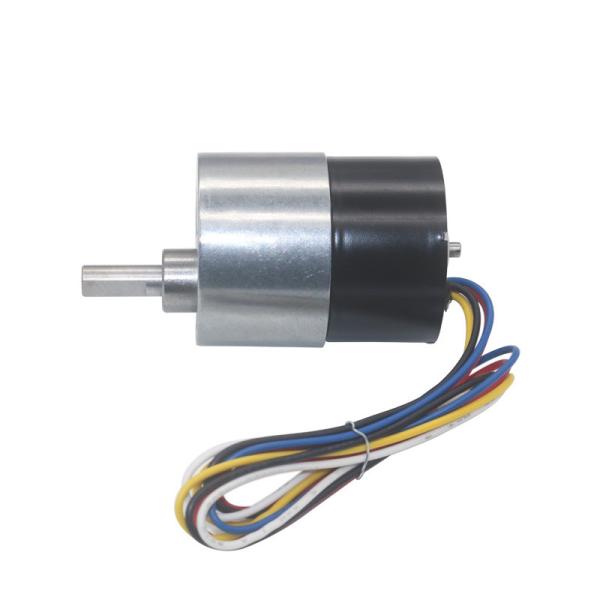

    JGB37 3525 Brushless DC Gear Motor 24V 12v Brushless Motors

    Ask Lasest Price
    Brand Name : ASLONG
    Model Number : JGB37-3525
    Certification : CE,ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000pcs/Week
    Delivery Time : 5-8working days
    • Product Details
    • Company Profile

    JGB37 3525 Brushless DC Gear Motor 24V 12v Brushless Motors

    JGB37 3525 Brushless DC Gear Motor 24V 12v Brushless Motors


    JGB37-3525 DC Brushless Geared Motor With Long Life And Low Noise Reversed Signal Feedback 12V24V


    Specification:
    • Voltage:DC12V

    No-load Speed:480rpm,300rpm,160rpm,100rpm,53rpm,33rpm,22rpm,17rpm,11rpm,6rpm,4rpm

    • Voltage:DC24V

    No-load Speed:960rpm,600rpm,320rpm,200rpm,107rpm,66rpm,45rpm,35rpm,22rpm,12rpm,7rpm

    • Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
    • Motor Diameter: about 37mm
    • Motor Body Length: 25mm
    • Output Shaft Diameter: 6mm(D-Type)
    • Output Shaft Length: 12mm
    • Gearbox Length: see the table

    Wire Connection Method:

    • Red line: power +
    • Black line: Power -
    • White line: CW / CCW control line,White line and black line together, you can change the motor direction
    • Blue line: PWM speed control line, then 0 ~ 5V pulse width governor
    • Yellow line: FG signal line
    • JGB37 3525 Brushless DC Gear Motor 24V 12v Brushless Motors
    • Datasheet:

    Model number:JGB37-3525
    Rated DC 12V testing parameter datasheet
    Reduction ratio6.31019305690131168270506810
    No Load Current(ma)≤70≤70≤70≤70≤70≤70≤70≤70≤70≤70≤70
    No Load speed (rpm)96060032020010766453522127
    Rated torque(kg.cm)0.81.22.33.66.810.915.920.432.7Max 35kg
    Rated speed (rpm)6854282281427625322515.78.55.8
    Rated Current(A)0.80.80.80.80.80.80.80.80.80.80.8
    Stall Torque (kg.cm)1.52.54.77.512.522.532Max 35kg Forbidden Stall
    Stall Current(A)1.81.81.81.81.81.81.8
    Gearbox Length(mm)19222426.529
    Rated DC 24V testing parameter datasheet
    Reduction ratio6.31019305690131168270506810
    No Load Current(ma)≤130≤130≤130≤130≤130≤130≤130≤130≤130≤130≤130
    No Load speed (rpm)96060032020010766453522127
    Rated torque(kg.cm)0.450.71.31.846.49.312193535
    Rated speed (rpm)6854282281427625322515.78.55.8
    Rated Current(A)0.40.40.40.40.40.40.40.40.40.40.4
    Stall Torque (kg.cm)1.223.85.611.51826.5Max 35kg Forbidden Stall
    Stall Current(A)1.31.31.31.31.31.31.3
    Gearbox Length19222426.529
